- All concrete cracks; thin, stable vertical hairlines are usually shrinkage and cosmetic.
- Horizontal, stair-step or widening diagonal cracks suggest soil pressure or settlement and deserve an engineer.
- Date, photograph and measure every crack, then recheck monthly; growth matters more than width alone.
- Water coming through a crack is a separate urgency, even when the crack itself is stable.
- Fix the cause before finishing the basement, or new drywall and flooring will hide and then suffer from the problem.
You are standing in the basement with a flashlight, looking at a jagged line that runs from the top of a poured concrete wall toward the floor. It is thin, but it was not there last winter, or maybe you just never looked. New Yorkers with basements in Brooklyn, Queens, Staten Island, the Bronx and across Long Island all face this moment, and the internet offers answers ranging from "ignore it" to "your house is falling down."
The truth sits in the middle. Concrete cracks as it cures and as soils move around it. The job is to figure out what kind of crack you have, whether it is moving, and whether water is involved. This guide gives you a method, with the patterns to recognize, the tools to monitor, the numbers to keep in mind and the point at which you stop experimenting and call a professional. Details are current as of October 2026.
1. Why Basement Concrete Cracks
Concrete shrinks as it cures. It also expands and contracts with temperature, and it is hit constantly by the soil around it. In New York, several local forces add to that baseline.
- Curing shrinkage. As excess water leaves fresh concrete, it contracts, and thin vertical cracks form, often near corners or windows.
- Soil pressure. Wet clay and saturated fill push against foundation walls. Over time that pressure can crack or bow a wall.
- Freeze-thaw cycles. Water that enters a crack freezes, expands and widens it, then drains and repeats.
- Differential settlement. Part of a foundation settles more than another because of uneven soil, old fill, a nearby excavation or changes in groundwater.
- Drainage failures. Downspouts that dump against the wall, clogged yard drains and high water tables load the foundation.
- Nearby construction and vibration. Dense neighborhoods with adjacent excavation can shift soils and stress older foundations.
- Tree roots and utilities. Roots remove moisture from clay soils, causing shrinkage, while leaking pipes soften them.
In older Brooklyn row houses, foundations may be rubble stone, brick or early concrete, and their cracks behave differently from modern poured walls. A crack in mortar between stones is a maintenance issue; a crack through a monolithic wall is a structural question.

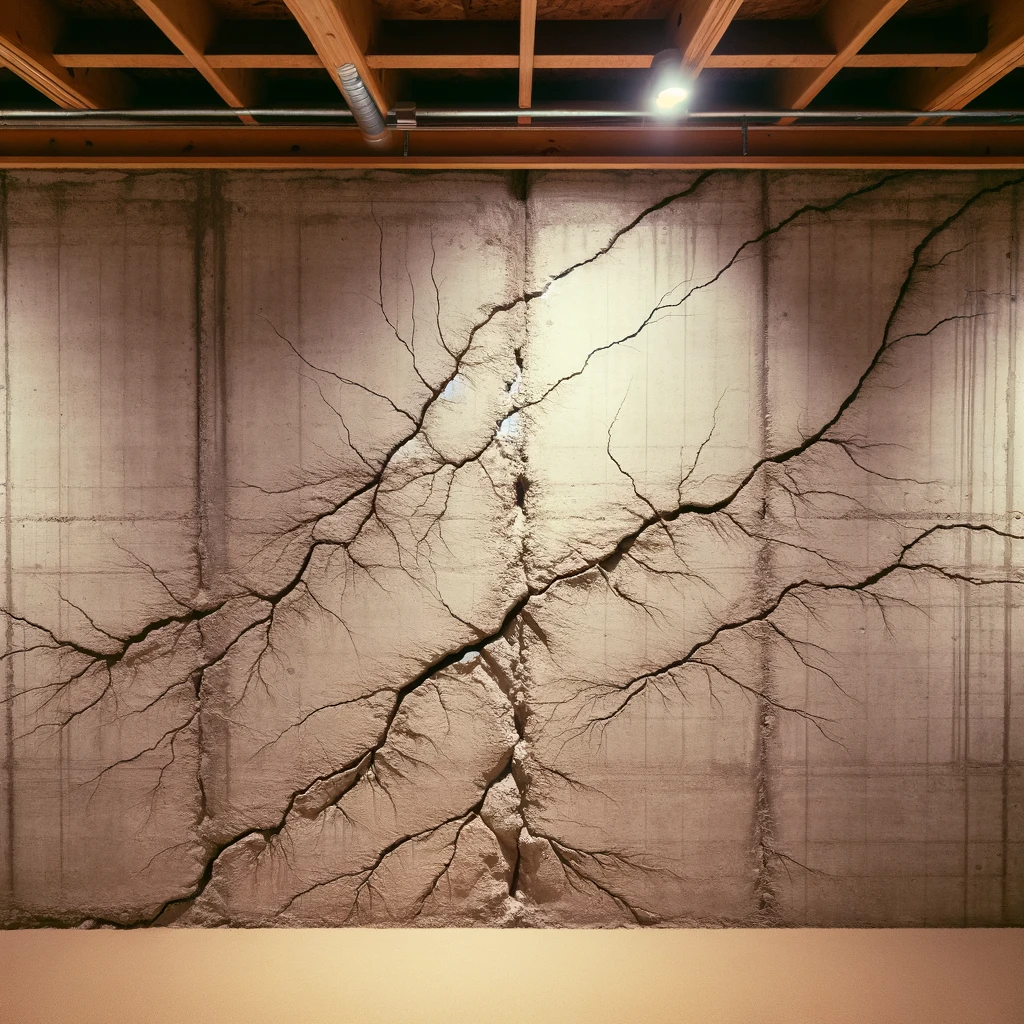

2. Reading the Crack: A Field Guide
Different patterns point to different causes. Use the table as a first filter, not a diagnosis.
| Pattern | Typical cause | Typical urgency |
|---|---|---|
| Thin vertical hairline, uniform width | Curing shrinkage | Low, monitor |
| Vertical crack, wider at one end | Minor settlement or thermal movement | Low to moderate |
| Diagonal crack from a corner | Differential settlement or soil pressure | Moderate, monitor closely |
| Horizontal crack, often mid-height | Lateral soil or hydrostatic pressure | High, engineer |
| Stair-step crack along block mortar joints | Settlement or lateral pressure on block | High |
| Crack with one side offset from the other | Active movement | High |
| Crack that leaks or stains | Water infiltration | High for moisture, even if stable |
| Floor slab crack with heaving | Soil or water pressure under the slab | Moderate to high |
Width gives a rough guide, not a rule. Cracks under about one eighth of an inch are very common. Wider than about a quarter of an inch deserves attention. But a stable half-inch crack is often less worrying than a hairline that grows monthly. Movement is the signal.
3. How to Monitor a Crack Like an Engineer
Monitoring costs almost nothing and gives you real data.
- Mark both ends. With a pencil, draw a short line across each end of the crack and write the date.
- Photograph it. Place a ruler or coin beside the crack and shoot from a consistent distance.
- Measure width. Use a crack gauge card or a clear plastic ruler at several points.
- Install a crack monitor. Two overlapping plastic plates glued across the crack show any change on a printed grid. They are inexpensive and give clear readings.
- Log it monthly. Add notes after heavy rain, melting snow and extended cold snaps.
- Watch the surrounding area. Check upstairs for sticking doors, diagonal cracks above windows, or sloping floors.
Three to six months of stable readings, including a freeze-thaw season, is reassuring. Any visible growth, new offset or new cracks nearby should end the monitoring stage and begin the inspection stage.
4. Water: The Other Half of the Problem
Many people focus on structure and miss moisture. A crack can be structurally stable and still let in water every time it rains.
Signs of water infiltration
- Damp patches or efflorescence, the white chalky deposits left by evaporating water.
- Staining at the base of the wall or at the crack line.
- Musty smell or visible mold on stored items.
- Rust on the bottom of metal furnace or water heater legs.
- Standing water after storms, especially in flood-prone pockets.
The EPA's mold resources stress that controlling moisture is the key to preventing growth, so identify and fix the source before you clean or finish anything. Common fixes include regrading, extending downspouts, repairing exterior drains, sealing or injecting cracks, interior drain channels with sump pumps, and, in serious cases, exterior excavation and membrane. Which approach fits depends on where the water comes from, which an on-site visit can often determine.
5. When to Call a Structural Engineer
Call an engineer, not a handyman, when you see any of the following:
- A horizontal crack or a wall that bows inward.
- A crack that has widened since you marked it.
- Stair-step cracking in block or brick foundation.
- Displacement, where one side of the crack is out of plane.
- Cracks accompanied by sloping floors, sticking doors or cracks upstairs.
- Cracks near load-bearing posts, beams or where an addition meets the original house.
- Any crack after nearby excavation or a vehicle strike.
An engineer inspects the structure, identifies cause and prescribes the repair, in writing and often with drawings. In New York, structural repairs and changes usually go through the Department of Buildings with a registered design professional as the applicant, so that report is also the paperwork backbone of the repair. The DOB's overview of how to obtain a permit outlines the process.
For related structural questions, you may like our guide to cracks in a support beam or our step-by-step foundation crack repair walkthrough, which focuses on the repair methods themselves rather than diagnosis.
6. Repair Options, From Light to Heavy
Repairs follow the diagnosis.
- Surface sealing. Hydraulic cement or flexible sealant fills stable, dry cracks. It is cosmetic and sometimes water-resistant.
- Epoxy injection. Structural epoxy bonds a cracked wall back together, suitable for stable, dry cracks.
- Polyurethane injection. Flexible foam stops water in cracks that may move slightly.
- Carbon fiber straps or steel bracing. These stabilize bowing walls under lateral pressure.
- Drainage and grading. Reducing the load often resolves the cause.
- Interior drain systems and sump pumps. They manage water that enters the basement.
- Underpinning or pier work. Extends or reinforces footings where settlement is active. This is major structural work requiring engineering and filings.
- Exterior excavation and waterproofing. Digging to the footing allows waterproof membrane and drain installation. It is costly and disruptive, but it addresses the source.
Crack repair methods are not interchangeable. Epoxy in a leaking, moving crack fails quickly, and polyurethane in a structural crack does not restore strength.
7. Why Hire a Licensed Pro Instead of a Handyman
N.Y. Renovation Services will tell you honestly when a crack is only a monitoring item.
A basement crack looks small, and the temptation is to hand it to whoever is nearby with a tube of sealant. That is how a structural symptom ends up under fresh paint and a finished wall. Our approach is different, and the difference shows up in cost later.
N.Y. Renovation Services starts with the question of cause. If the pattern points to movement or water, we bring in a structural engineer or a waterproofing specialist, and we manage the sequence rather than leaving you to coordinate. Our in-house team then handles what follows: concrete patching, framing, insulation, drywall, flooring and paint. You get one plan and one point of contact.
Here is what a licensed team brings to this job:
- Proper diagnosis. We do not guess at causes, and we do not seal what an engineer should be inspecting.
- Permits and filings. Structural work usually needs a registered design professional and Department of Buildings filings. We coordinate those, along with board paperwork in co-ops and condos.
- Hazmat awareness. Basements in older buildings can have asbestos-containing materials, lead paint, or silica dust from cutting and demolition. OSHA's silica standard requires dust controls when concrete is cut or ground, and we plan for it.
- Finishing that holds up. Moisture-resistant materials and correct sequencing keep new walls from becoming mold farms.
- Itemized pricing. Repair, waterproofing and finishing appear as separate lines in a written quote, and 5% of the project cost goes to a nonprofit of your choice.
If you are comparing contractors, our hiring checklist lists what to ask for, including licensing and insurance.
8. How Our Basement Repair and Renovation Process Works
N.Y. Renovation Services keeps repair, waterproofing and finishing on one itemized contract.
Homeowners often ask who they should call first: an engineer, a waterproofer or a contractor. The honest answer is that the order matters, and that is exactly the part we manage for you.
Step 1: Free estimate visit. We look at the cracks, the moisture history and the surrounding rooms. We take photographs and measurements and ask about drainage, past repairs and any changes nearby. If the pattern looks cosmetic, we say so and tell you what to monitor. If it looks structural, we tell you that too, before you spend money on finishes.
Step 2: Engineering and approvals. When a crack calls for a structural opinion, we bring in a New York State registered engineer or architect. They issue the report and, if required, the drawings that a Department of Buildings filing is built on. In co-ops and condos we assemble the alteration agreement package, certificates of insurance and board documents. Ask us to handle permitting for you.
Step 3: Repair and water control. Our crews and specialty partners carry out the repair method the engineer specifies, whether that means injection, bracing, drainage or regrading, and we document the work.
Step 4: Rebuild. Because we are an in-house design and build firm, the same team that closes the repair also frames, insulates, drywalls, floors and paints, with no hand-off gap where responsibility disappears.
Step 5: Written, itemized close-out. Your contract lists each phase separately, so you can see exactly what repair, waterproofing and finishing cost.
We are based on Staten Island, and basements across the five boroughs, Long Island and nearby New Jersey are routine territory for us. If you would like numbers and a plan, request your free estimate and we will schedule a visit.
9. Planning a Finished Basement After the Repair
Many homeowners want to turn a repaired basement into a family room, home office, rental unit or in-law suite. As of April 2026 the DOB accepts cellar accessory dwelling unit applications for one- and two-family homes, which has made basement conversions a larger topic, but it adds filings, egress and ceiling-height requirements. Check eligibility with the DOB before designing anything.
A sensible sequence looks like this:
- Diagnose and stabilize. Engineering report, crack repair and moisture control come first.
- Prove it dry. Let the basement go through a few storms with no leaks before finishing.
- Rough-in. Electrical, plumbing and framing, with required inspections.
- Insulate and air-seal. Use moisture-tolerant insulation against foundation walls.
- Finish. Drywall, flooring and paint selected for damp-prone spaces.
| Phase | Typical timeframe | Notes |
|---|---|---|
| Engineering inspection and report | Days to a few weeks | Scheduling plus drafting |
| Stabilization or crack repair | 1 day to several weeks | Depends on method |
| Permit and filing, if needed | Weeks to months | Complex filings run longer |
| Basement finishing | Several weeks | Varies with scope |
Use our renovation cost guide for the larger budget picture and the Renovation ROI Calculator to weigh a finished basement against other upgrades.
10. Neighborhoods and ZIP Codes We Serve
Foundation behavior depends on soil, groundwater and the era of construction, so each area has its own patterns.
- Hell's Kitchen, Manhattan (10019, 10036): Walk-ups and new high-rises where "basements" are usually cellars with shared walls. Elevator reservations and tight access shape repair logistics.
- Boerum Hill, Brooklyn (11201, 11217): Brownstones and row houses in the LPC Boerum Hill Historic District. Garden-level and cellar walls may be stone or brick, and exterior work needs Landmarks review if it affects visible facades.
- Kew Gardens, Queens (11415): Pre-war co-ops, Tudor buildings and detached homes. Older masonry foundations and cellar-level shared walls are common.
- Port Richmond, Staten Island (10302): Older wood-frame and two-family homes on varying soils and a high water table in places. This is close to our Staten Island home base.
- Farmingdale, Nassau County (11735): Village of Farmingdale capes and colonials, where block foundations and sump pumps are frequent. Permits come from the village building department.
- Fair Lawn, Bergen County, NJ (07410): Capes, ranches and garden apartments. Permits come from the municipal construction office under the NJ Uniform Construction Code.
11. Related Repairs and Next Steps
Cracks rarely appear in only one place. If you are chasing a pattern through the house, you may find these guides useful:
- Why tile floors crack and when to call a pro
- Cracked floor tile repair, DIY guide
- Repairing cracked textured ceilings
- Melting roof snow and attic insulation
Do you need a permit for what you are planning? Start with our Do I Need a Permit? page, and if the project includes a kitchen on the upper floors, take a look at our kitchen remodeling work.
Costs and timelines here are general planning information, not quotes. Request a written, itemized quote through our free estimate form.
